Savox SC0252MG - 10KG Digital Metal Gear Servo

Quantity
In Stock

Spend another R2,500.00 to get free shipping for your order!

**If you are looking for larger quantities of stock than what we have listed, please contact us.**

Something you maybe didn't know about this amazing Savox brand is that they design, develop and manufacture their products from start to finish resulting in products that deliver the most reliable, innovative servos in the industry, an example of this being the first to launch a 12bit 4096 resolution digital servo that not only had the resolution factor but backed that up with coreless motors and titanium gears!  Here at RC King we can't help but love these guys for bringing innovation and passion back into the hobby!  Well done Savox USA!

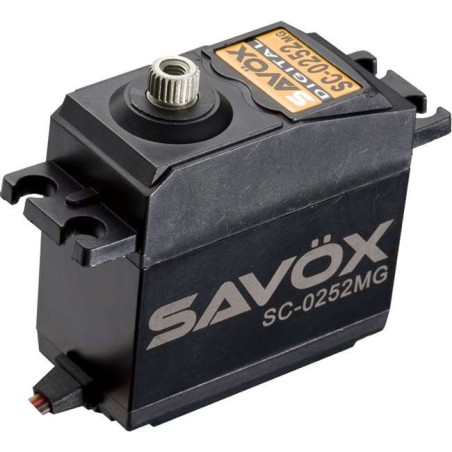

This is the Savox SC0252MG Metal Gear Digital Servo.

Savox 0252MG

The Savox SC-0252MG is a high torque, metal-geared, digital standard servo and is an excellent replacement for a plastic geared servo.  Recommended for 30-60 size aircraft and as a steering servo in cars 1/10 and 1/8 scale due to the durability of the metal gear train during use in harsh situations.

Specifications:
Torque @ 4.8v - 7.2kg/100.0oz-in
Torque @ 6v - 10.5kg/145.8oz-in
Speed @ 4.8v - 0.23 sec/60 deg
Speed @ 6v - 0.19 sec/60 deg
Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4
Weight: 49.0g
Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 300mA @4.8V, 330mA @6.0V
Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
Idle Current: 6mA @4.8V, 6mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
