Get charged up with the dual battery charging SkyRC D100 Balance Charger with Bluetooth and phone APP.

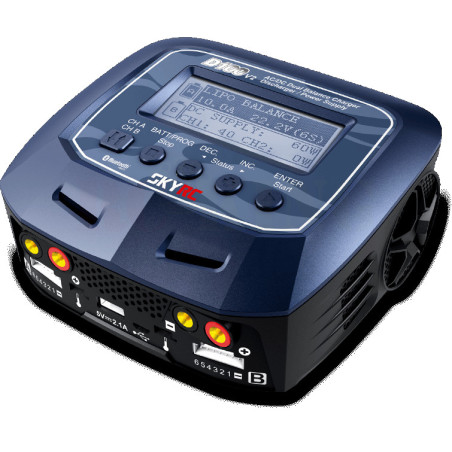

SkyRC D100 Dual Balance Charger is a twin channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. Battery chemistries include LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB
The Dual Charger supports power distribution in AC mode so that it can allocate more amperage to shorten the charging time.
AC Input Voltage: 100-240V
DC Input Voltage: 11-18V
Charge Power AC: 100W / DC 2*100W
Discharge Power: 2*10W
Charge Current Range: (0.1-10A) x2
Discharge Current Range: (0.1-2.0A) x2
DC Power Supply Output: 13.8v / max 100w
Current Drain for Balance Port: 300ma/Cell
Trickle Charging Current: 50-300ma and Off
LiPO/LiFE/LiON/LiHV Battery Cell Count: 1-6s
NiMH / NiCD Battery Cell Count: 1-15s
PB Battery Voltage: 2-20v
User set terminal voltage
PC control
Firmware upgrades
Lithium Battery Meter
Internal Resistance Meter
Automatic Charging Current Limit
Capacity Limit
Temperature Threshold
Processing Time Limit
Output Socket: 4mm Banana Plug
Balance Lead Socket
Temperature Sensor Port
Micro USB Port for PC Link/WiFi Module Connection
USB Prot 2.1A@5V
Active cooling fan
LiHV mode
Lithium Battery Balancer: Has an individual-cell-voltage balancer
Maximum Safety: Automatic Charging Current Limit, Capacity Limit, Temperature Threshold, Processing Time Limit
Program Data Store/Load: Can store up to 20 different charge/discharge profiles for each channel
Battery Meter: Check battery's total voltage, highest voltage, lowest voltage and each cell's voltage
Battery Resistance Meter: Monitor pack voltage, cell voltage and other data during charging, view charge date in realtime graphs and also control charging and update firmware from "Charge Master"
Terminal Voltage Control: Allows the user to change the end voltage (for expert users).
